M12T Flush long distance proximity sensor
M12T Flush long distance proximity sensor
M12T Flush long distance proximity sensor
M12T Flush long distance proximity sensor

M12T Flush long distance proximity sensor

  • Product Type:KJT-J12MT
  • Installation Method:Flush
  • Detection Distance:4/6mm
  • Working Voltage:10-36VDC /90-250VAC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Cable

       kjt enhanced long-distance inductive proximity switch is a long-distance inductive proximity switch, including a shell, a high-frequency oscillation circuit, a shaping detection circuit, a signal processing circuit, and a switching output circuit. After the signal output by the high-frequency oscillation circuit is shaped and detected by the shaping and detection circuit, it is connected to the signal processing circuit.

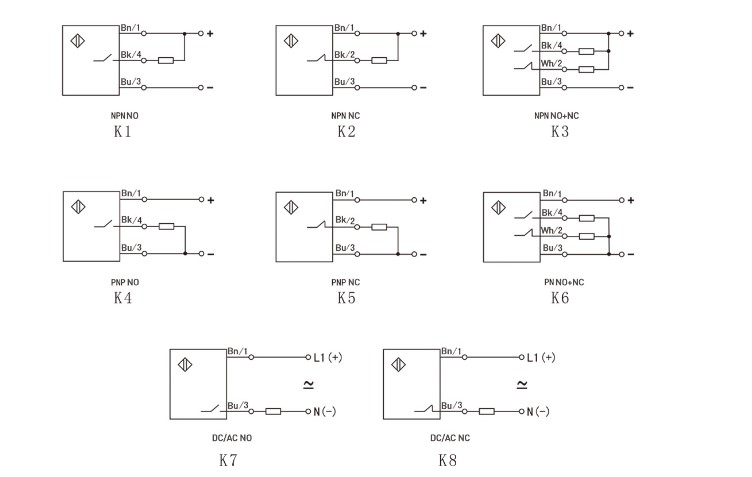

●Can detect various metal objectsDC 2NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2NC
● Shell material: Nickel copper alloyDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC
●Ambient temperature: -25℃~+70℃DC PNP NO

DC 3 PNP NC

--

--


1

Product Model
KJT-J12MT
Installation methodFlush
Detection distance
4/6MM
Working temperature
-25~+70℃
Specifications12*50
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M PVC lead wire
Protection levelIP67
Sensing surface materialPBT
Shell MaterialNickel plated copper
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2

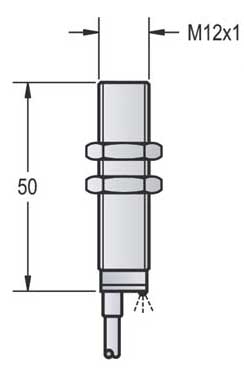

外观尺寸
