φ6mm Ring Inductive proximity Sensor(plug-in)
φ6mm Ring Inductive proximity Sensor(plug-in)
φ6mm Ring Inductive proximity Sensor(plug-in)
φ6mm Ring Inductive proximity Sensor(plug-in)
φ6mm Ring Inductive proximity Sensor(plug-in)

φ6mm Ring Inductive proximity Sensor(plug-in)

  • Product Type:KJT-T6C
  • Installation Method:Non-Flush
  • Detection Distance:6mm
  • Working Voltage:10-36VDC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:Connector M12,4-pin

KJT ring proximity switch has a variety of sensing apertures of 6mm/10mm/15mm/21mm, with two working principles: dynamic and static. High resolution: Even small steel balls with a diameter of 0.6mm can be reliably detected. The particularly fast response time of 0.2ms can set the pulse extension and sensitivity through the potentiometer. With wires and connectors, normally open and normally closed functions are optional. Suitable for detecting metal parts on automated conveying systems, such as spring screws, etc. This sensor has the characteristics of high resolution and short response time.

●Can detect various metal objects--

● With surge, overload, short circuit and

   reverse polarity protection functions

--

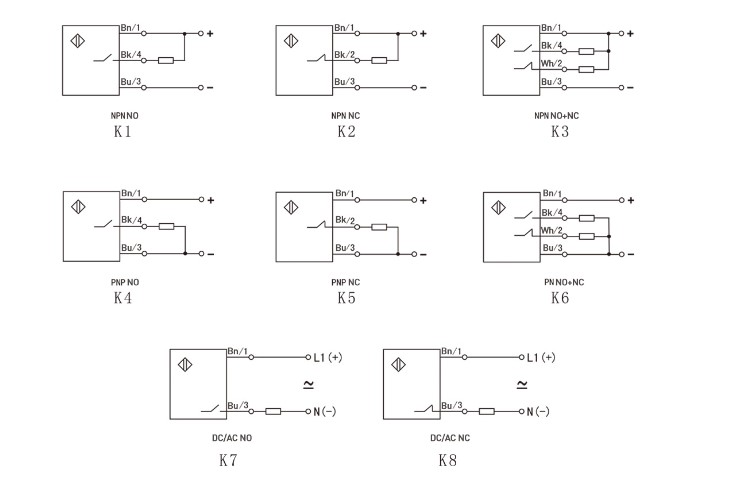

Shell material: PBTDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC
●Ambient temperature: -25℃~+70℃DC PNP NO

DC 3 PNP NC


1

Product Model
KJT-T6C
Installation methodNon-Flush
Detection distance
6MM
Working temperature
-25~+70℃
Specifications60*35-20
Operating Voltage
10-36V DC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection methodM12,4-pin
Protection levelIP67
Sensing surface materialPBT
Shell MaterialPBT
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2

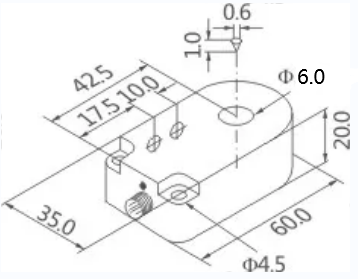

外观尺寸

T6-C12
