φ10mm Ring Inductive proximity Sensor
φ10mm Ring Inductive proximity Sensor
φ10mm Ring Inductive proximity Sensor
φ10mm Ring Inductive proximity Sensor
φ10mm Ring Inductive proximity Sensor

φ10mm Ring Inductive proximity Sensor

  • Product Type:KJT-T10
  • Installation Method:Non-Flush
  • Detection Distance:10mm
  • Working Voltage:10-36VDC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Cabel

  KJT ring proximity switch has a variety of sensing apertures of 6mm/10mm/15mm/21mm, with two working principles: dynamic and static. High resolution: Even small steel balls with a diameter of 0.6mm can be reliably detected. The particularly fast response time of 0.2ms can set the pulse extension and sensitivity through the potentiometer. With wires and connectors, normally open and normally closed functions are optional. Suitable for detecting metal parts on automated conveying systems, such as spring screws, etc. This sensor has the characteristics of high resolution and short response time.

●Can detect various metal objects--

● With surge, overload, short circuit and

   reverse polarity protection functions

--

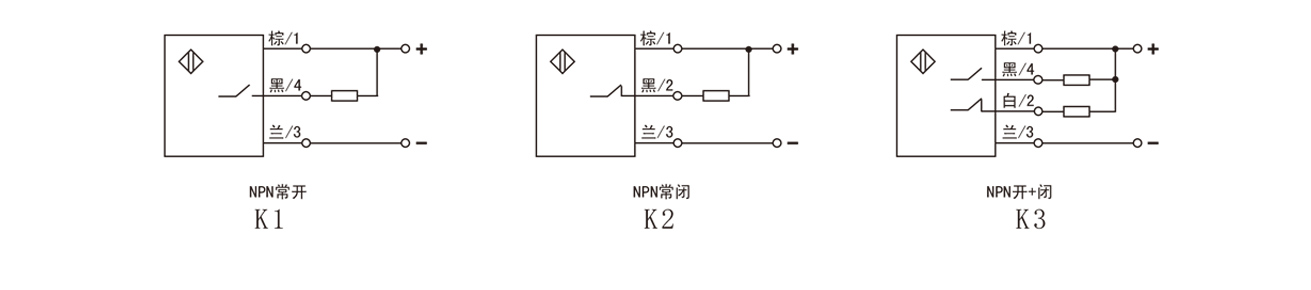

Shell material: PBTDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC

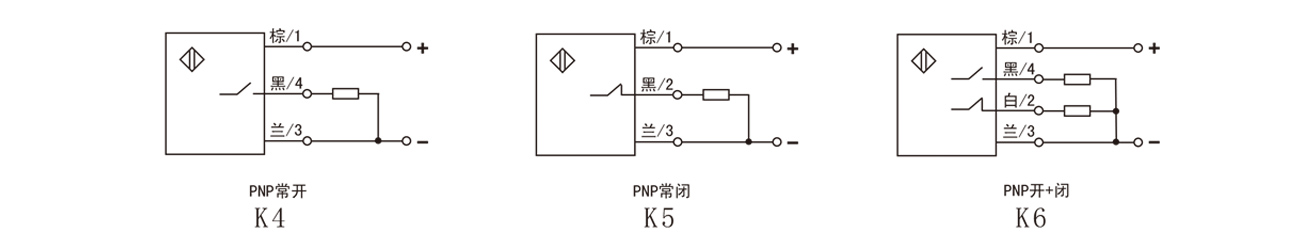

●Ambient temperature: -25℃~+70℃DC PNP NO

DC 3 PNP NC


1

Product Model
KJT-T10
Installation methodNon-Flush
Detection distance
10MM
Working temperature
-25~+70℃
Specifications60*35-20
Operating Voltage
10-36V DC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M PVC lead wire
Protection levelIP67
Sensing surface materialPBT
Shell MaterialPBT
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2




外观尺寸

T10

尺寸


微信图片_20230810185926
