M12 Flush corrosion resistant proximity Sensor
M12 Flush corrosion resistant proximity Sensor
M12 Flush corrosion resistant proximity Sensor
M12 Flush corrosion resistant proximity Sensor
M12 Flush corrosion resistant proximity Sensor

M12 Flush corrosion resistant proximity Sensor

  • Product Type:KJT-J12MNF
  • Installation Method:Flush
  • Detection Distance:2mm
  • Working Voltage:10-36VDC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PUR lead wire

      KJT Corrosion-resistant proximity switch is made of an integrated polytetrafluoroethylene shell that is resistant to high pressure and corrosion. Therefore, this series is very suitable for ocean surface pressure and underwater pressure, corrosive liquid working conditions. Oil-resistant, corrosion-resistant, suitable for harsh environments and cleaning equipment.


●Can detect various metal objectsDC 2NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2NC
Shell material: PTFDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC
●Ambient temperature: -25℃~+70℃DC PNP NO

DC3 PNP NC

AC 2 NO

AC 2 NC



1

Product Model
KJT-J12MNF
Installation methodFlush
Detection distance
2mm
Working temperature
-25~+70℃

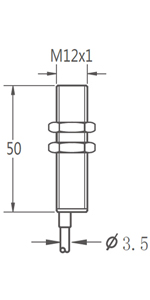

SpecificationsM12*1*50
Operating Voltage
10-36V DC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M PUR lead wire
Protection levelIP67
Sensing surface materialPTFE
Shell MaterialPTFE
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

fb285d6189710dda4b059808cd4c8c15

3

接线图

4
