150°C M12 Flush High Temperature Proximity Sensor
150°C M12 Flush High Temperature Proximity Sensor
150°C M12 Flush High Temperature Proximity Sensor

150°C M12 Flush High Temperature Proximity Sensor

  • Product Type:KJT-J12GWM
  • Installation Method:Flush
  • Ambient temperature::-40~150℃
  • Detection Distance:2mm
  • Dimension:M12*50
  • Voltage:10-36V DC/90-250VAC

       KJT high temperature resistant proximity switches adopt a split approach and are used for detection, positioning and counting in high temperature and harsh environments. The probe can withstand medium temperatures of -25℃~230℃. This product operates stably in high-temperature environments of -25°C to 230°C and has high reliability, short circuit, and reverse polarity protection. Therefore, it is widely used in related manufacturing industries such as steel, metallurgy, glass, and chemical fiber plant transportation pipelines. At the same time, it can meet the requirements for detecting metals or non-metals in low-temperature and severe cold environments.


●Can detect various metal objectsDC 2 NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2 NC
Shell material: Nickel-plated copperDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC
●Ambient temperature: -25℃~+230℃DC 3 PNP NC

AC 2 NO

AC 2 NC


1

Product Model
KJT-J12GW
Installation methodFlush
Detection distance
2mm
Working temperature
-40~150℃
SpecificationsM12*1*50
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M silicone wire
Protection levelIP67
Sensing surface materialPTFE
Shell MaterialNickel plated copper
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2

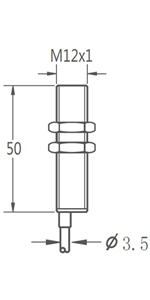

外观尺寸

e6d5a50cb4fc1fab80dc91bcd0e9ec6c

尺寸

4ae96743b5ff60d8f32b899a1d39c90f
