-50℃ M8 Flush Low Temperature Inductive Proximity Sensor
-50℃ M8 Flush Low Temperature Inductive Proximity Sensor
-50℃ M8 Flush Low Temperature Inductive Proximity Sensor
-50℃ M8 Flush Low Temperature Inductive Proximity Sensor
-50℃ M8 Flush Low Temperature Inductive Proximity Sensor

-50℃ M8 Flush Low Temperature Inductive Proximity Sensor

  • Installation Method:Flush
  • Detection Distance:1mm
  • Working Voltage:10-36V DC/90-250VAC
  • Output Mode:NPN/PNP NO/NC/NO+NC
  • Switch point offset:≤±10%
  • Hysteresis range:1…20%

      KJT high and low temperature resistant proximity switches are used for detection, positioning and counting in high temperature and harsh environments. The probe can withstand -50℃ medium temperature. This product operates stably in a high-temperature -50°C environment and has high reliability, short circuit, and reverse polarity protection. Therefore, it is widely used in related manufacturing industries such as steel, metallurgy, glass, and chemical fiber factory transportation pipelines. At the same time, it can meet the requirements for detecting metals or non-metals in low-temperature and severe cold environments.


●Can detect various metal objectsDC 2 NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2 NC
Shell material: Nickel-plated copperDC 3 NPN NO
● Protection level: IP67(IEC)DC 3 NPN NC
●Ambient temperature: -50℃DC PNP NO

DC 3 PNP NC

AC 2 NO

AC 2 NC


1

Product Model
KJT-J8GW
Installation methodFlush
Detection distance
2MM
Working temperature
-50

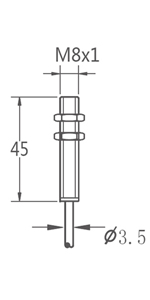

SpecificationsM8*1*45
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level1000Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<1.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection method2M silicone wire
Protection levelIP67
Sensing surface materialPTFE
Shell MaterialNickel plated copper
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2




2

1fe2051673e3edace6cb011a74d66851

3

接线图

4


9
