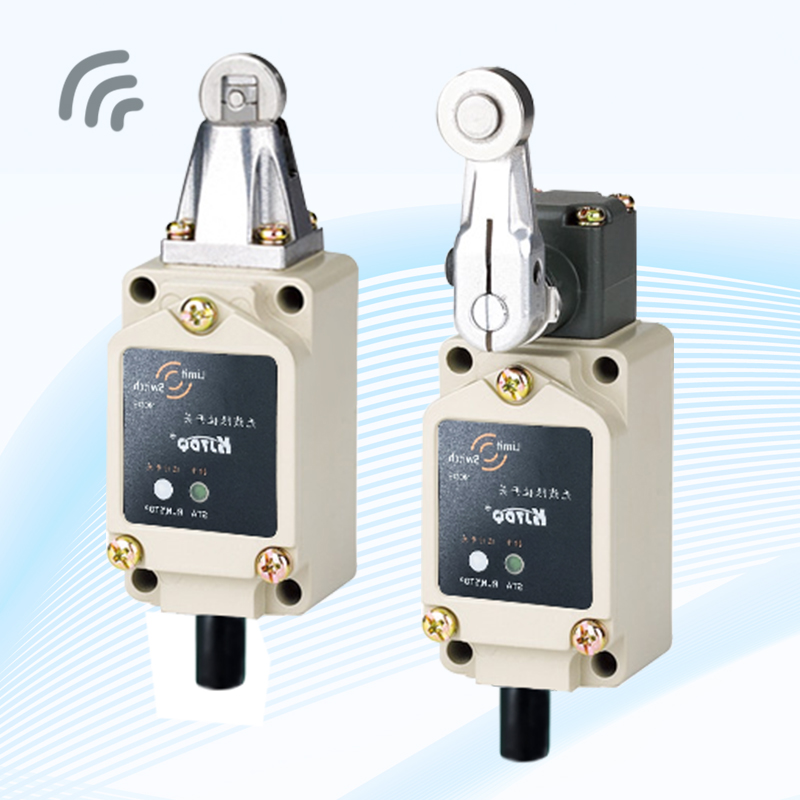

KJT47CSZK-05 wireless travel limit switch
KJT47CSZK-05 wireless travel limit switch
KJT47CSZK-05 wireless travel limit switch
KJT47CSZK-05 wireless travel limit switch

KJT47CSZK-05 wireless travel limit switch

  • 1:Connect using the 470-510MHZ 2.4GHZ standard radio band
  • 2:License-free global radio connectivity
  • 3:Communication range up to 1000 meters
  • 4:Rugged one-piece cast aluminum alloy housing with high mechanical strength
  • 5:Oil-resistant, waterproof and pressure-proof structure
  • 6:15A 250VAC rated voltage

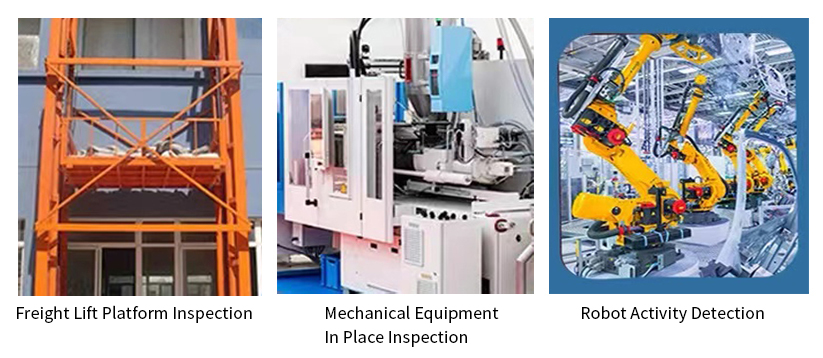

● There is no need to dig trenches and set up wires, which greatly reduces cable, labor costs and engineering cycles;

● Simplify engineering design and reduce designers’ workload (especially cable routing);

● Affected by natural terrain such as bridges, rivers, mountains, etc., cables cannot be laid arbitrarily;

● According to the increase of detection points, a private data collection network can be quickly established, with flexible and convenient expansion;

● When a fault occurs, the detection points are concentrated, eliminating the cumbersome tasks encountered in the past when inspecting along the line.

1


 Characteristics


Operation speed

1mm to 2m/S


Action frequency

Mechanically:120 times/minute Electically:30 times/Minute


Contact resistance

Under 15mΩ(initial)


Insulation resistance

100MΩ以上(500VDC) 100mΩ above (at 500VDC)


Bearing voltage


Non-contact end:1,000VAC,50/60Hz for one minute
Current parts and noncurrent parts and end and connect position :2,200VAC,50/60Hz for one minute


Vibration

Action:10 to 55Hz,1.5mm pairs swing


Hitting


Machine:1,000m/Sec2(about 100G,S)
Action:300m/Sec2(about 30G,S)


Ambient temperature

use: -10to +80℃


Humidity

Max 95% RH


Serve life


Mechanically:15,000,000 times above(at rated ot)
Electrically:500,000 times above


Weight

 About 258g


Protection structure

IEC specification:IP66/IP67



Model
KJT47CSZK-01

KJT47CSZK-02

KJT47CSZK-03


KJT47CSZK-04KJT47CSZK-07KJT47CSZK-08KJT47CSZK-09

KJT47CSZK-06

KJT47CSZK-66

KJT47CSZK-68

KJT47CSZK-69

KJT47CSZK-05
Max OF2720g2720g1000g1420g1360g2720g150g1200g
Min RF910g910g227g280g227g910g--
Max PT1.7mm1.7mm20°20°20°1.7mm28mm227g
Min OT6.4mm5.6mm70°70°70°4mm-55°
MaxMD1mm1mm10°10°10°1mm-35°
OP34 ± 0.8mm44.8± 0.8mm---44.5 ± 0.8mm-90 ± 10 °


2
