The address code rope switch is a device used for safe control and position determination. It usually consists of a pull cord, a switch, and a device that connects the switch to the device.
The working principle of the address code rope switch is to install multiple address code rope switches in different locations of the equipment or machine. Each address coded pull switch is associated with a specific location and has a specific code. When the address code cord is pulled, the switch changes its state and sends a signal to the control system. The control system determines the location of the equipment or machine based on the received status signal of the address code pull rope switch, and takes corresponding operations or controls as needed.
For example, an address code pull switch can be used to ensure that a device stops running at a specific location, or that a specific program runs at a specific location. Address code pull-rope switches are commonly used in material conveying systems, hoisting machinery, telescopic shelves and other applications that require location determination and safe control. By pulling the address code pull ropes at different locations, the operator can easily switch locations to ensure the accuracy and safety of the operation.

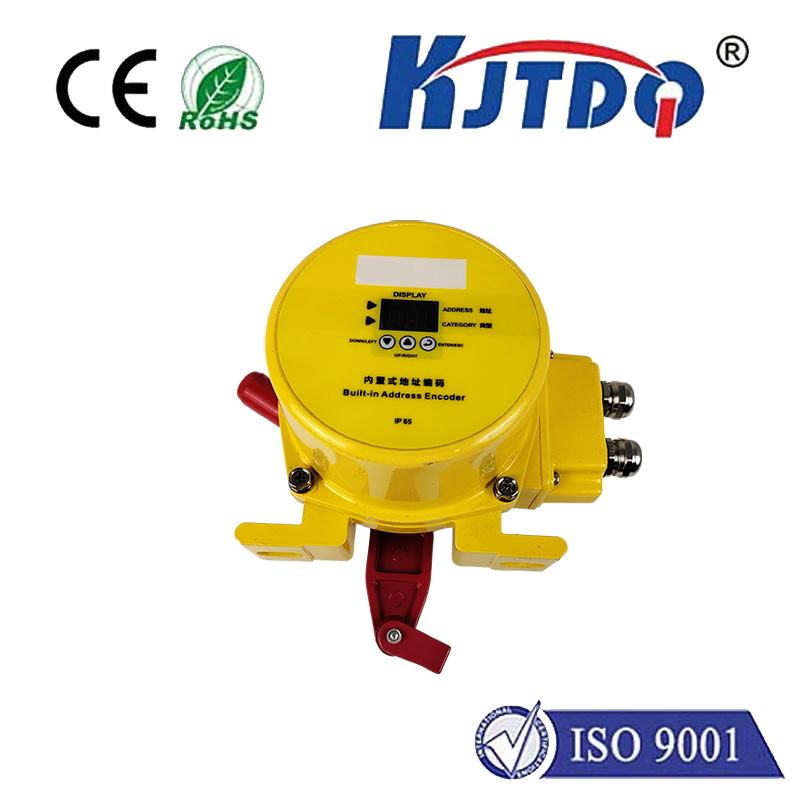

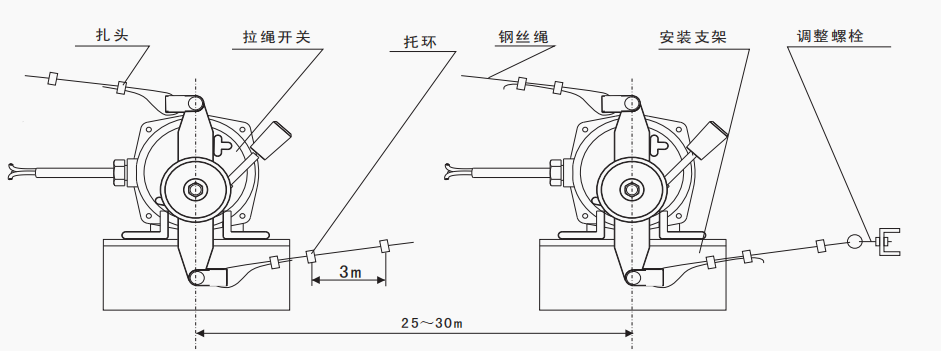

KJT-LS type address code pull rope switch is widely used in factories and mines with belt conveyors such as steel, cement, power plants, and mines. This product is installed on both sides of the belt conveyor and is used for emergency shutdown of the belt conveyor. A protective switch that pulls the wire rope at any point within the switch operating distance to cut off the operating circuit and shut down the entire line to protect the safety of the tape machine and people.
Working principle: When an emergency occurs at the tape transportation site, pulling the wire rope tied to the lifting eye is the action of the slider and switch in the machine, which sends a shutdown signal. The switch automatically resets after releasing the wire rope.
