Detailed explanation in one article, five kinds of belt conveyor anti-clogging devices

• time：2023-10-25 11:30:20
• Click：0

The principle of the anti-clogging device is to prevent clogging of the unloading chute through a series of designs and mechanisms. Here are some common anti-clogging device principles:

Vibration device: Vibrates to keep the materials in the chute in a flowing state to prevent material accumulation and blockage. Vibration can be achieved by motors, vibrators or other vibration devices.

Cleaning device: Install a cleaning device in the chute, such as scrapers, brushes, etc., to clean the materials in the chute regularly or continuously to prevent accumulation and blockage. The cleaning device can be driven by electric motor or pneumatic device.

Water spray device: By spraying water, the water flow is introduced into the chute to reduce the adhesion of materials and prevent material accumulation and blockage. The water spray device can be operated regularly or continuously as needed.

Chute design: Reasonably design the slope and shape of the discharge chute to ensure smooth flow of materials and reduce the possibility of accumulation and blockage. The design of the chute needs to consider factors such as the fluidity, adhesion and density of the material.

Material flow control: By controlling the material flow of the unloading chute, it is possible to avoid accumulation and blockage caused by excessive material influx into the chute. This can be achieved by controlling the feed volume, adjusting the vibration frequency or using a flow control device.

These anti-clogging device principles can be used alone or in combination, and the appropriate method can be selected according to specific process requirements and material characteristics. By using effective anti-clogging devices, production efficiency can be improved, equipment protected, maintenance costs reduced, and the safety of the production process ensured.

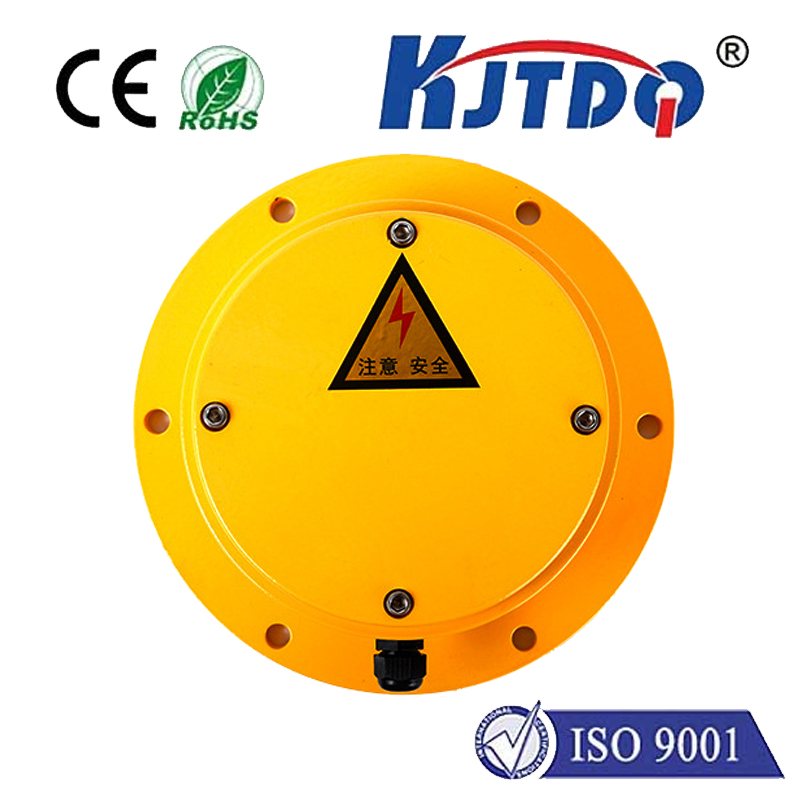

KJT-LCX-II circular chute clogging detector adopts a side-pressure movable door structure. After troubleshooting, the movable door automatically resets when the pressure is pushed. The Tao shell with anti-corrosion layer, heavy-duty micro switch point, high sensitivity, The action force only needs 0.9Kg to trigger the switch. The imported travel switch is used in the machine, which has sensitive action and high reliability. The chute clogging protection device adopts a door-type structure with a spring reset. When the material is clogged in the chute, the piled material puts pressure on the side wall of the chute, thereby pushing the originally installed movable door outward. When the movable door deflects at an angle When, its control switch action sends out warning, vibration or shutdown signals. When the blockage fault is eliminated, the movable door automatically resets under the action of the spring and returns to its original state. Status data can also be sent to the remote control room through the ground industry encoder.
