KJT heavy-duty limit switch is a mechanical control switch, which is used for conveyor belt deviation prevention, crane over-roll protection, and rope pull switch. Taking advantage of its high reliability, it is widely used in steel equipment, large conveying machinery, loading and unloading machinery and cement equipment. Resistant to harsh environments. The glass sealed contacts are filled with inert gas and are not affected by the environment. Resistant to vibration, impact, and wide range of applications.
| Product parameters | |
| model | T2C 441-11Y |
| Principle of action | Mechanical |
| Shell raw materials | Gray cast iron, galvanized |
| Contact material | silver |
| gross weight | 1,524g |
| Normally closed quantity (NC) | 1 |
| Normally open quantity (NO) | 1 |
| B 10D normally closed contact (NC) | 2,000,000 operations |

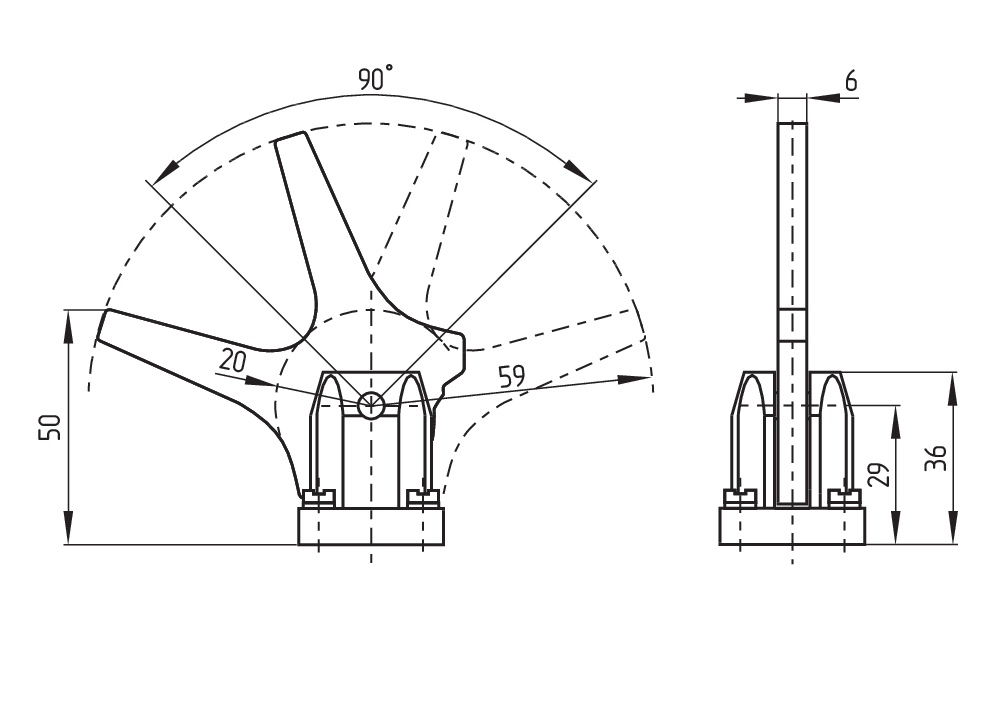

| operating units | Fork rod |
| Mechanical life | 10,000,000 operations |
| contact open circuit | 2×6mm |
| Minimum drive speed | 1mm/min |
| Maximum action speed | 0.5m/sec |
| Notice | Action speed: Driving speed of the vertical drive angle switching axis |
| Circuit connection | Screw connection M20 x 1.5 |
| Minimum cable cross-section | 1.5mm² |
| Maximum cable cross section | 2.5mm² |
| Notice | Cable part: including conductor ferrules |
| Wire cross section | 13 AWG |

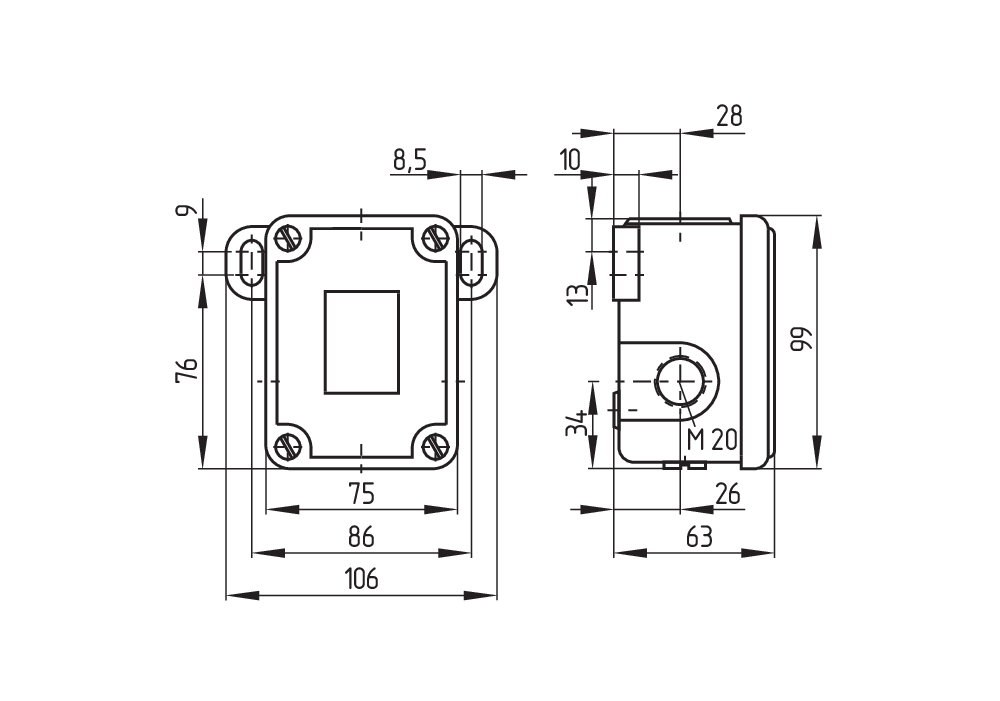

| Product Size | |
| length, width and height | 63mm*106mm*194mm |
| Application environmental conditions | |
| Protection level | IP65 |
| ambient temperature | -30 ... +90°C |
| Rated insulation voltage | 400 VAC |
| Rated impulse withstand voltage | 6kV |
| Electrical data | |
| Thermal test current | 16A |
| Application category | AC-15: 400 V / 4 A |
| switching element | Normally open contact, normally closed contact |
| Switching principle | slow movement |

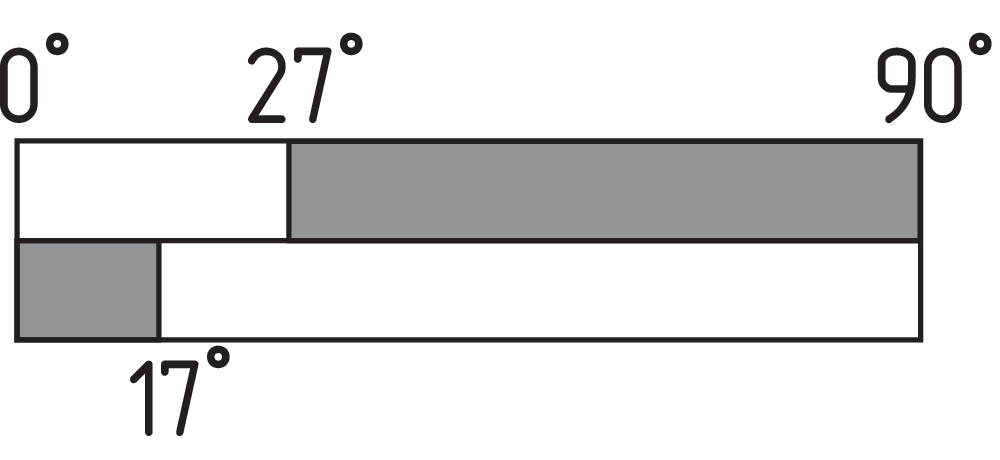

NOTE Switch travel diagram
VS NO contact adjustment range VÖ NC contact adjustable range N After the trip |
Contact closed
Contact open
Set range
breakpoint
Definitely opening order/angle
