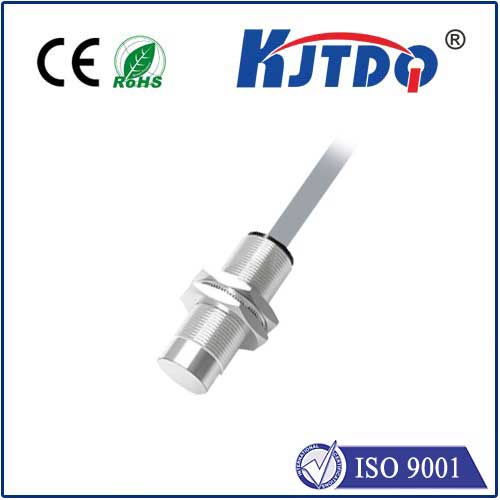

M18 Flush All-Metal Proximity Sensor
M18 Flush All-Metal Proximity Sensor
M18 Flush All-Metal Proximity Sensor
M18 Flush All-Metal Proximity Sensor
M18 Flush All-Metal Proximity Sensor

M18 Flush All-Metal Proximity Sensor

  • Product Type:KJT-J18MQS
  • Installation Method:Flush
  • Detection distance:5mm/8mm
  • Working voltage:10-36VDC / 90-250VAC
  • Output Mode:multiple output modes
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Leads

      KJT All-Metal proximity switch detects various metal objects, fast, no contact, extremely long life, reliable action, stable performance, fast frequency response, long service life, strong anti-interference ability, waterproof, shockproof, corrosion resistance and other characteristics . The integrated stainless steel shell including the sensing surface is absolutely free from any liquid or gas (cannot corrode stainless steel) during the entire working period. The material at the sensing surface is relatively thick, so it has better pressure resistance. The full metal housing makes them more mechanically resistant than traditional sensors. Therefore, it overcomes the weakness of traditional inductive sensors that are easily damaged.



● Detect various metal objectsDC 2 NO
● With surge, overload, short circuit and reverse polarity protection functionsDC 2 NC
● Shell material: Nickel copper alloyDC 3NPN NO
● Protection grade IP67(IEC)DC 3NPN NC
● Ambient temperature:-25℃~+70℃DC PNP NO

DC 3 PNP NC

AC 2 NO

AC 2 NC


1



Product Model
KJT-J18MQS
Installation methodFlush
Detection distance
5mm/8mm
Working temperature
-25~+70℃
SpecificationsM18*1*79
Operating Voltage
10-36VDC / 90-250VAC
Ripples<10%
No-load current<10mA
Maximum load current200mA
Voltage drop≤1.5V
On-off level250Hz
Hysteresis<15(Sr)
Overload protection current180mA
Short circuit protectionYES
Repeat accuracy<3.0%(Sr)
Temperature drift<10%(Sr)
Response time0.5ms
Connection methodConnector M12,4-pin
Protection levelIP67
Sensing surface materialStainless steel
Shell MaterialStainless steel
EMCRFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/VibrationIEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2



2

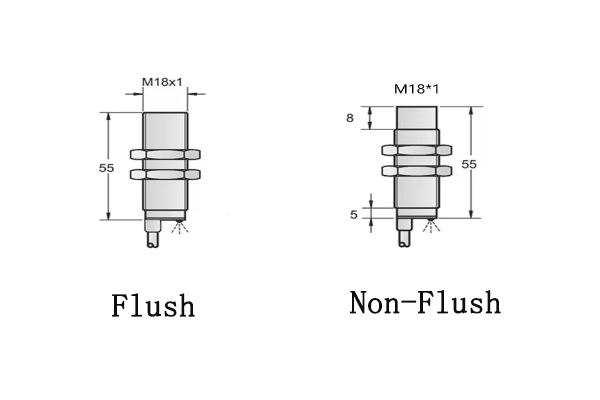

M18M

3

接线图

4


9
