KJT47CSZK-02 Wireless limit switch
KJT47CSZK-02 Wireless limit switch
KJT47CSZK-02 Wireless limit switch
KJT47CSZK-02 Wireless limit switch

KJT47CSZK-02 Wireless limit switch

  • ■:Connect using the 470-510MHZ 2.4GHZ standard radio band
  • ■:License-free global radio connectivity
  • ■:Communication range up to 1000 meters
  • ■:Rugged one-piece cast aluminum alloy housing with high mechanical strength
  • ■:Oil, water and pressure resistant construction

● There is no need to dig trenches and set up wires, which greatly reduces cable, labor costs and engineering cycles;

● Simplify engineering design and reduce designers’ workload (especially cable routing);

● Affected by natural terrain such as bridges, rivers, mountains, etc., cables cannot be laid arbitrarily;

● According to the increase of detection points, a private data collection network can be quickly established, with flexible and convenient expansion;

● When a fault occurs, the detection points are concentrated, eliminating the cumbersome tasks encountered in the past when inspecting along the line.

1


Rated voltage 15A 250VAC
operating speed 1mm~2m/s
operating frequency mechanical:120 times/min
 electric:30 times/min
Contact resistance 15mΩ or less
Insulation resistance 100Ω or more (below 500VDC)
Withstand voltage Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute
 Between terminal and ground: 2,200VAC, 50, 60Hz for one minute
 Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute
vibration Action durability: 10~55Hz, 1.5mm double amplitude
impact Mechanical durability: 1000m/s2 or more (about 100G or more)
 Malfunction durability: 300m/s2 or more (about 30G or more)
Use ambient temperature -10~+80 ℃
humidity Maximum 95%RH
Service life Mechanical: more than 15 million times   Electrical: more than 500,000 times
Protection level IEC:IP66
weight About 258g

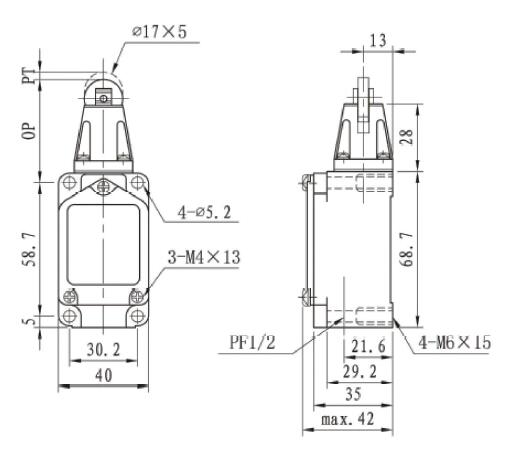

modelKJT47CSZK-01

KJT47CSZK-02

KJT47CSZK-03

KJT47CSZK-04KJT47CSZK-07KJT47CSZK-08KJT47CSZK-09

KJT47CSZK-06

KJT47CSZK-66

KJT47CSZK-68

KJT47CSZK-69

KJT47CSZK-05
OFmax2720g2720g1000g1420g1360g2720g150g1200g
RF minimum910g910g227g280g227g910g--
PTmax1.7mm1.7mm20°20°20°1.7mm28mm227g
OT minimum6.4mm5.6mm70°70°70°4mm-55°
MDmax1mm1mm10°10°10°1mm-35°
OP34 ± 0.8mm44.8± 0.8mm---44.5 ± 0.8mm-90 ± 10 °

2

eff0df5ff3b2017b84294a749b92294a_16922491212738ae


4

微信图片_20231220084304
