KJT Plug-in Address Code
- Product Series：KJT Plug-in Address Code
- Load current：AC380V 5A，DC24V 5A
- Appliance life：＞100,000 times
- Protection class：IP65/IP67
●Aluminum alloy precision die-casting shell, strong impact resistance
● Circuit modular design for easy installation and maintenance
● Parameters can be set through the dial button, which is convenient and fast
● The device alarm flashes to display the device address, making it easier for on-site managers to identify and search the alarmed switch status.
● Support ModbusRTU protocol to obtain device status
● Three-digit digital tube displays device address and type in a circular manner
● Device address, type, and communication baud rate can be modified by pressing buttons

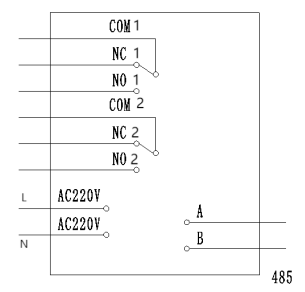

● Two dry contact outputs, synchronized with the input signal
●Two dry contact inputs, supporting first-level alarm and second-level alarm of protection switch
● Can be used with a variety of equipment types: rope pulling, deflection, anti-skid, blocking, stacking, tearing, material flow
The address encoder uses a self-designed protocol to provide an RS485 communication interface to connect to the comprehensive protection instrument. By using shielded twisted pairs and communication repeaters, the transmission distance can reach 1km.
