KJT-SJ Non-contact Digital Slip Detector
KJT-SJ Non-contact Digital Slip Detector
KJT-SJ Non-contact Digital Slip Detector
KJT-SJ Non-contact Digital Slip Detector

KJT-SJ Non-contact Digital Slip Detector

  • Product Series:KJT-SJ Non-contact digital slip detector
  • Load current:AC380V 5A,DC24V 5A
  • Contact method:NO 1. NC1; NO 2. NC 2. (please specify when ordering)
  • Reset mode:Auto
  • Appliance life:>100,000 times
  • Protection class:IP65/IP67

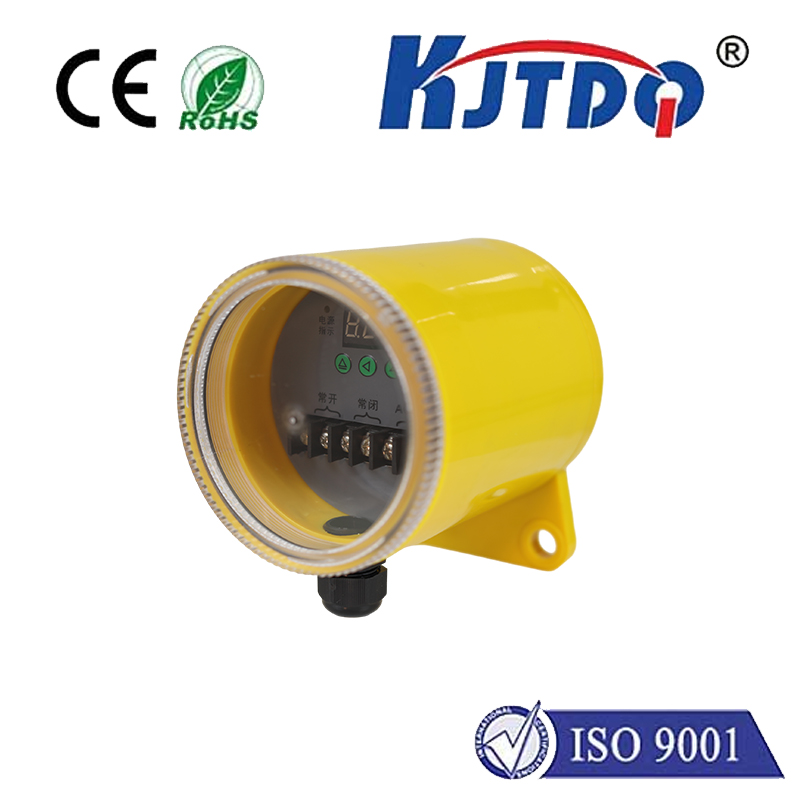

KJT-SJ non-contact digital slip detector is an economical, reliable, simple and versatile monitoring device for shaft speed and other rotating devices. When it detects that the current speed signal is lower than or higher than the normal speed range, the switch outputs a set of switching signals for alarm or shutdown. No moving parts, no wear, long safety life, integrated structure, centralized control device, simple setting or troubleshooting. The shell adopts a waterproof and dustproof design, and two bolts fix the shell, so it can be directly installed and used in harsh environments.

1

Product Paramenters
Ambient temperature-30℃~+50℃
Relative humidity0~85%
Speed range0.5-9.99m/s
Delay time10 seconds
Pulse6-120Hz
Number of contacts1 normally open, 1 normally closed (2 groups of normally open and 2 groups of normally closed can be added as needed)
Contact ratingAC380V 5A
reset modeAuto
Electrical life>100,000 times
Protection levelIP65/IP67
Operating VoltageAC  220V

尺寸图kjt-sj-1


88


场景图

d25bccef52ed6fc24d8045760301c48
