KJT-QK Tilt switch
- Product Series：KJT-QK Tilt switch
- Load current：220VAC/2A

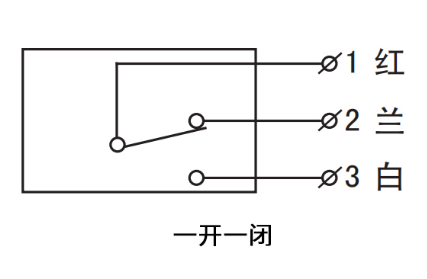

- Contact method：NO 1. NC1; NO 2. NC 2. (please specify when ordering)
- Reset mode：auto
- Appliance life：＞10万次
- Protection class ：IP65/IP67
KJT-QK type tilt switch is a simple structure, easy to use, safe and reliable material flow and material level detector. It has a small area,
is easy to install, is strong and corrosion-resistant. The shell is made of cast steel, which is wear-resistant, has high mechanical strength
and has a long service life. Made with special technology, the action angle is accurate and the repeatability is high. The hanging length
can be configured according to site needs.

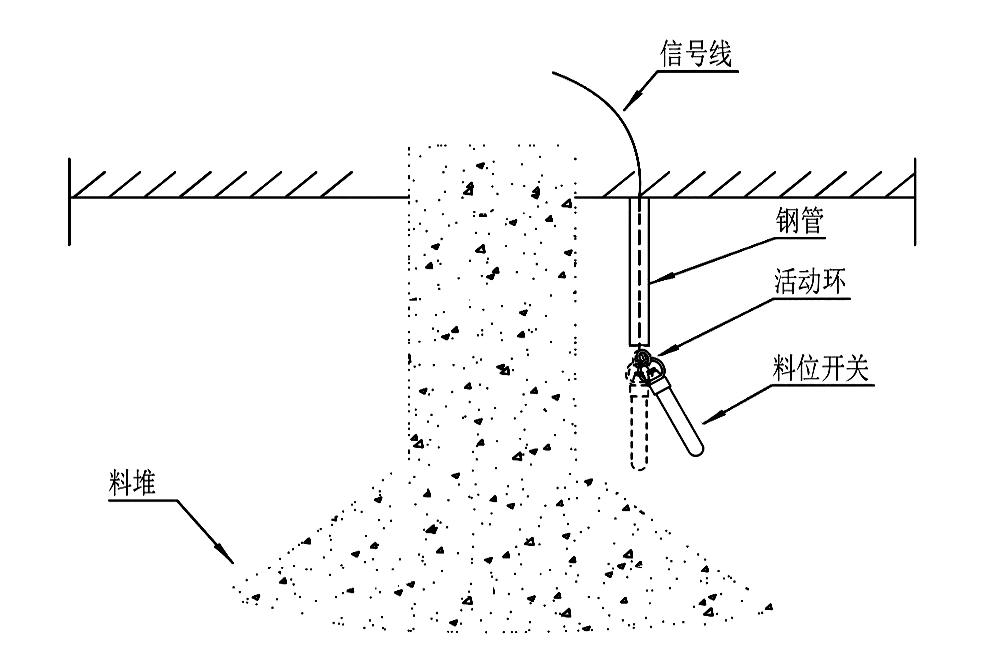

When the vertically suspended tilt switch is acted upon by an external force and the normally closed type deviates from the vertical
position by 20 degrees, the contacts inside the switch move and the normally closed contacts are disconnected. When the external
force is removed, the tilt switch returns to the vertical state and the contacts close again; When the normally open type is 20 degrees
above the vertical position, the internal contacts of the switch act, and the normally open contacts close. When the external force is removed,
the tilt switch returns to the vertical state, and the contacts open again. The changes in the opening and closing of the contacts in the tilt
switch are used to Determine the working condition of the equipment so that timely measures can be taken to protect the equipment.
| Ambient temperature | -20°c-100°c（customizable 200°c） |
| Relative humidity | NO LESS THAN 85% |
| Probe length | 180mm |
| Total length of probe | 210mm |
| Action force | 0.9Kg |
| Number of contacts | NO1.NC1 |
| Contact rating | 220VAC/2A |
| Reset mode | auto |
| Cable length | 6 meters (can be customized) |
| Weight | 1.2Kg |
