- Measuring distance：20 meters
- Measurement blind area：3 cm
- Measuring speed：500Hz
- Measurement accuracy：1%
- Resolution：1mm
- Operating temperature：-30~+65℃
- Supply voltage：10~36V DC
KJTYG10-KS laser radar is a new laser ranging solution launched by our company for drones, sweeping robots, industrial robots and other fields. Based on the DTOF ranging principle, this product has the characteristics of small size, low cost, excellent performance, strong resistance to ambient light interference, etc. It can be used as an upgraded replacement product in related fields. This product transmits distance information based on the UART TTL communication interface. It is simple to use, flexible to install and easy to expand. This model adopts a new optoelectronic solution and is very cost-effective.
▼ Features:
Measuring distance: 20 meters
Measuring blind area: 3 cm
Measuring speed: 500Hz
Measuring accuracy: 1%
Resolution: 1mm
Operating temperature: -30~+65℃
Power supply voltage: 10~36V DC
Small size: 45.5* 24.5* 27.5mm
Ambient light resistance: 12 meters @ 100K Lux
Product application: KJTYG10-KS laser radar ranging module can be used for: drone height determination, obstacle avoidance; robot obstacle avoidance; industrial light curtain; AGV obstacle avoidance; high-speed measurement and safety monitoring in the fields of transportation and industrial automation.
Basic function parameters: KJTYG10-KS contains rich functions and parameters
| Continuous measurement | √ |
| Power-on start measurement | Optional |
| I2C Communication | √ |
| UART TTL Communication | √ |
Basic parameters
| model | KJTYG10-KS | |
| Product Performance | ||
| Working distance | 0.03-20m | |
| Ranging frequency | 500Hz | |
| 5% reflectivity | 20m | |
| Resolution | 1mm | |
| Repeatability | ±10mm | |
| Ambient light resistance | 12米@100K Lux | |
| Operating temperature | -30℃~+65℃ | |
| Optical performance | ||
| Laser light source | Laser tube 905nm | |
| Laser Class | Class 3R | |
| Electrical properties | ||
| Supply voltage | 10~36V DC | |
| Power consumption | ＜0.5W | |
| other | ||

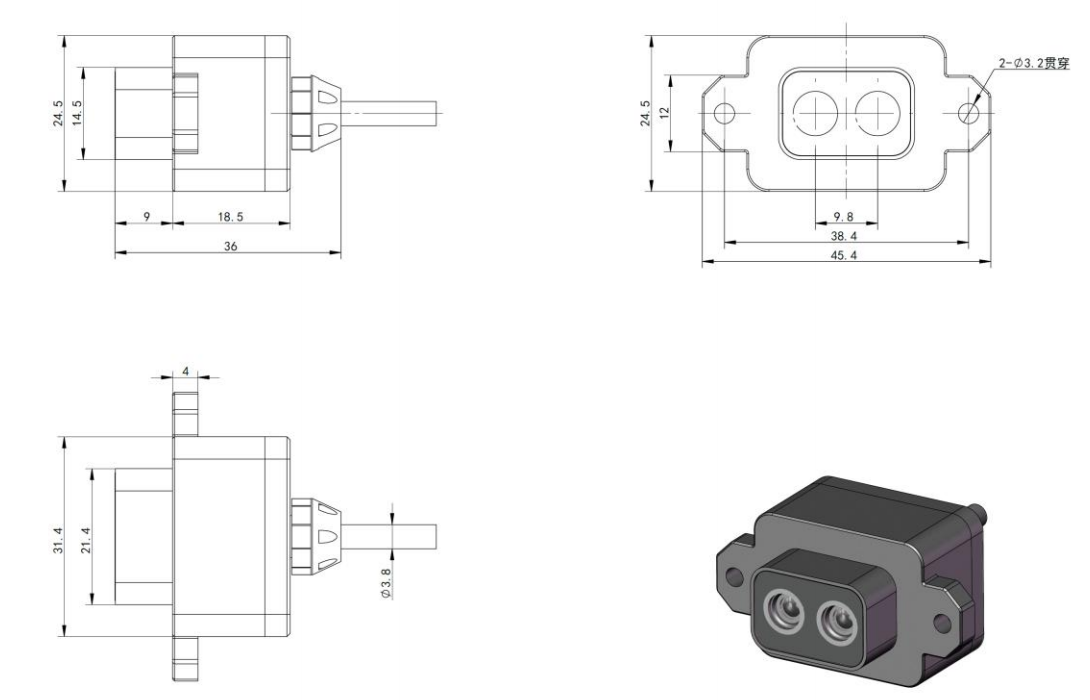

| Dimensions (length x width x height) | 45.5* 24.5* 27.5mm | |
| Body material | ABS/PC/PMMA | |
| interface | UART、IIC(Optional) | |
| Electrical Connections | ||
| Line Sequence | Function |  |
| 1 | TX | |
| 2 | RX | |
| 3 | 10-36V | |
| 4 | GND | |
